Washing Module and Rank C16 with bottles for Automatic Glassware Washer

Share to:

4L16 Washing Module

Washing Module and Rank 4L16 with bottles for Automatic Glassware Washer, S8000D Laboratory Glassware Washers are designed to wash and dry a wide variety of laboratory glassware.

Availability:

Quantity:



Inquire Add to Basket

Model:
4L16
Brand:
STIER

Product Description

U100 Upper Basket

• For holding up to 2 injector modules or inserts

• H 157, W 530, D 553 mm

A306A 3×6 Module（210 mm）

• Suitable for laboratory glassware such as volumetric flasks,

Erlenmeyer flasks, round bottom flasks, Schott flask, measuring cylinder, etc.

• 18 × S602108C injector nozzles(H 210 mm)

• H 243, W 184, D 472 mm

A306B 3×6 Module（210 mm）

• Suitable for laboratory glassware such as volumetric flasks,

Erlenmeyer flasks, round bottom flasks, Schott flask, measuring cylinder, etc.

• 18 × S602106A injector nozzles(H 210 mm)

• H 243, W 184, D 472 mm

L100 Lower Basket

• For holding up to 2 injector modules or inserts

• H 152, W 530, D 553mm

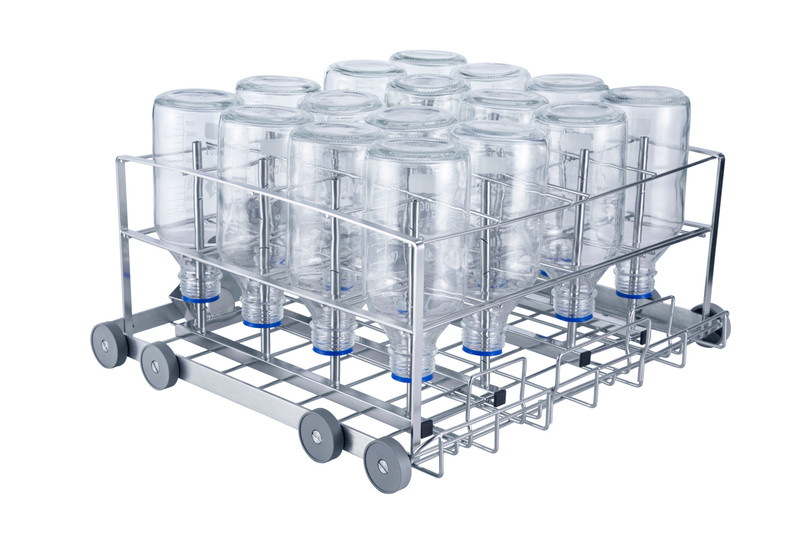

C16 4×4 Module

• Suitable for laboratory glassware such as Schott flask,

Erlenmeyer flasks, separatory funnel ,volumetric flasks, etc.

• H 234, W 530, D 551 mm

Maintenance points

1. Do not open the door at will during the operation of the laboratory cleaning machine to avoid heat loss and affect the drying effect (hot steam may also cause injuries to experimenters). The STIER bottle washing machine is equipped with a high-efficiency steam condenser, which will not discharge steam into the room, reducing safety hazards.

2. Cut off the water source after each use and open the door slightly to avoid moisture and odor. Gently wipe the instrument with a soft cloth and let it dry completely.

3. The weather is cold and the inlet water temperature is low. You should pay attention to the following two points:

(1) If the water temperature is too low, the power consumption of the heating device will increase, so the equipment should be descaled.

(2) If the inlet water temperature is too low, spots or films may appear on the cleaned glassware. It is recommended to start the instrument and let it run for 18 to 22 minutes before entering the main washing stage.

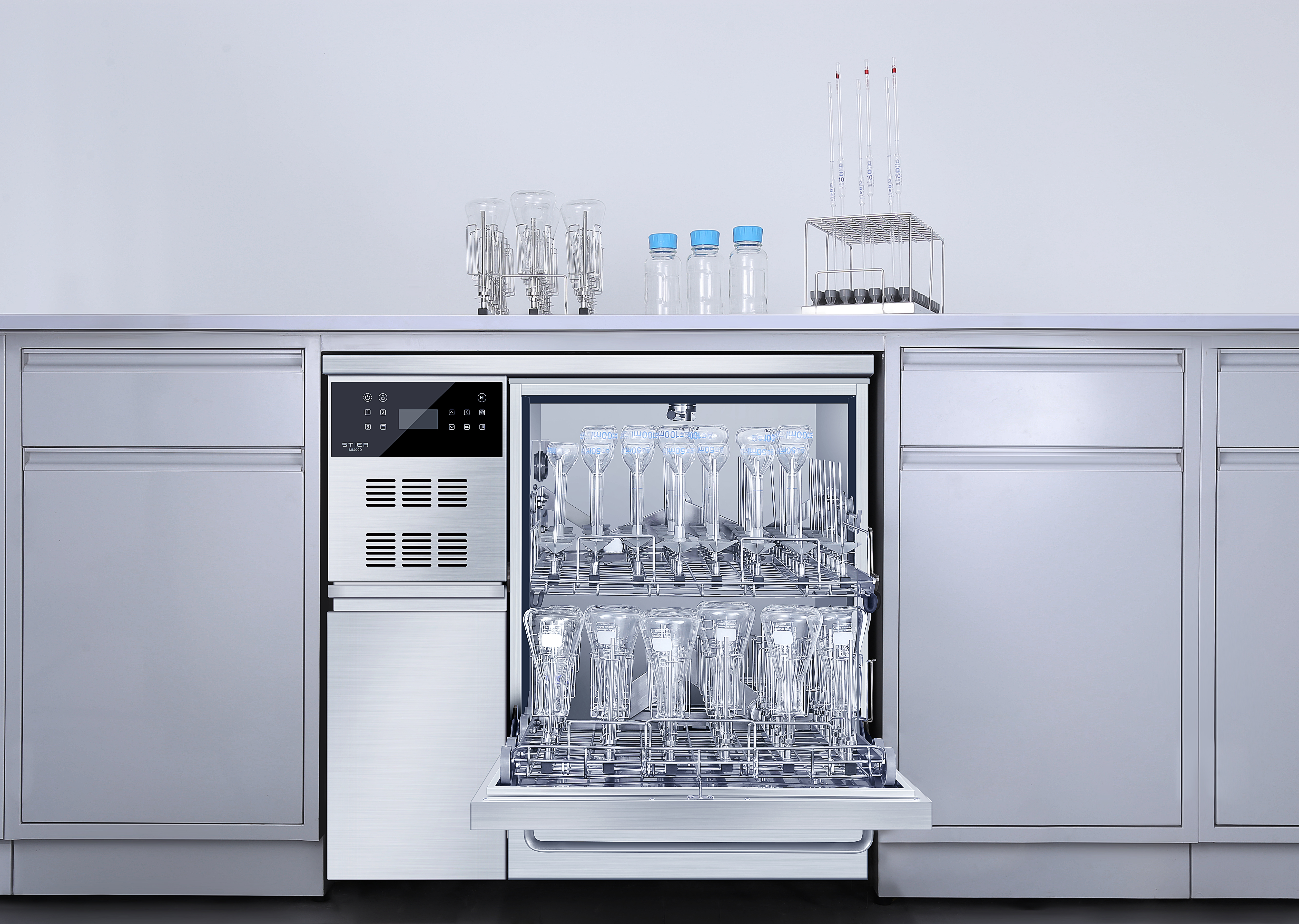

IMG_0303-2
